Data sheet
Brass ball valve, Rp 3/4", -0,9 to 80 bar, manufactured silicone-free
{{ $t('shop.all.artikelnummer') }}:
KH 34 SF

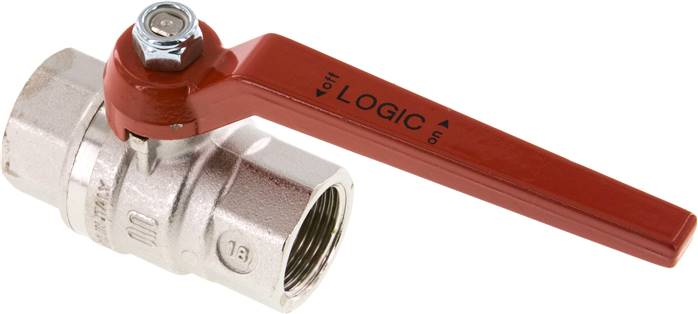

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE, handle: aluminium pressure casting
Temperature range:
-20 to +150 °C
Media:
Compressed air, vacuum (max. -0.9 bar), water, oils, non-corrosive liquids and hydrocarbons
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread G | Rp 3/4" |
| DN [mm] | 20 |
| L [mm] | 69,5 |
| PN [bar] | -0.9 to 80 |
| H [mm] | 51,0 |
| R [mm] | 115 |
Further information:
| {{ $t('shop.all.gewicht') }} | 360 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571420741 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
Figure
Drawing:
Drawing: 2-part ball valve, full bore, silicone-free production
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 34 SF.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
