Data sheet
Sleeve 1.4571, G 1/2"-6 (1/4")mm, without nuts
{{ $t('shop.all.artikelnummer') }}:
S 126 ES

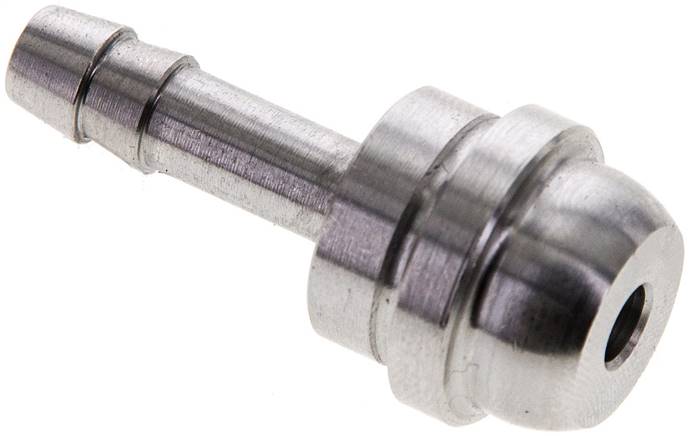

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Warning:
Version of the sleeves and union nuts varies depending on the manufacturer and material. Mixing of the individual parts with other manufacturers or materials is not recommended.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Sleeve 1.4571 |
| Hose diameter (inner) [mm] | 6 (1/4") |
| Union nut | UM 12 ES |
| Thread (G) | G 1/2" |
| Union nut 16mm | UM 12 ES K |
| Thread (G) | G 1/2" |
| Union nut with left-hand thread | UM 12 ES LH |
| Thread (G) | G 1/2" LH |
| L [mm] | 20 |
| SW [mm] | 24 |
Further information:
| {{ $t('shop.all.gewicht') }} | 25 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571608842 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Union nut for grommet
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number S 126 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
