Data sheet
Adhesive flange adaptor for loose flanges, DN80, PVC-U, 90mm
{{ $t('shop.all.artikelnummer') }}:
PVCBB 90

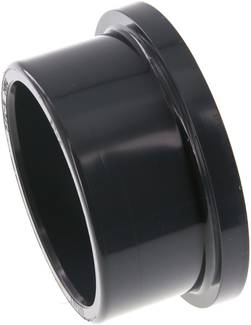

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Fitting of PVC-U (EN 1452-3)
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Warning:
Not suitable for compressed air or other gases under pressure!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Inner diameter d [mm] | 90 |
| Outer diameter D [mm] | 108 |
| DN [mm] | 80 |
| Flange diameter D1 [mm] | 125 |
| Length L [mm] | 52 |
| Collar thickness L1 [mm] | 11 |
| Z [mm] | 4 |
Further information:
| {{ $t('shop.all.gewicht') }} | 260 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571555313 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Collar bushing for loose flanges with adhesive sleeve
Drawing: Pressure-temperature diagram
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number PVCBB 90.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
