Data sheet
Adhesive threaded nipple, PVC-U, 50x63mm (ixa)-G 2" AG
{{ $t('shop.all.artikelnummer') }}:
PVCGN 506320

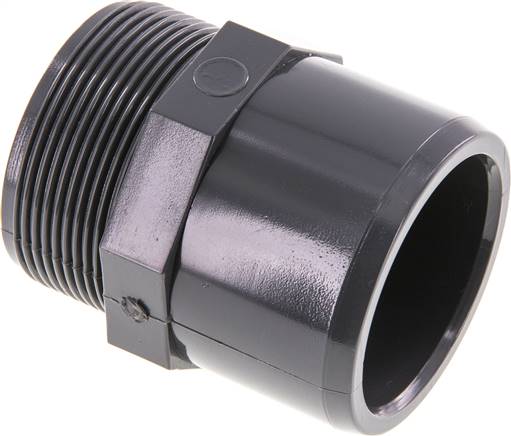

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Fitting of PVC-U (EN 1452-3)
Materials:
PVC-U
Temperature range:
0 to +60 °C
Operating pressure:
max. 16 bar
Properties:
Abrasion resistant, non toxic, corrosion free, ideal for above ground and underground installations.
Media:
Water, many inorganic chemicals, many acid, alkaline and salt solutions. Nor resistant against aromatic and chlorinated hydrocarbons. Never use for compressed air or other gases under pressure!
Warning:
Not suitable for compressed air or other gases under pressure!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Inner diameter d [mm] | 50 |
| Outer diameter D [mm] | 63 |
| External thread G | G 2" |
| Length L [mm] | 78 |
Further information:
| {{ $t('shop.all.gewicht') }} | 120 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571555702 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Connector with adhesive sleeve / nipple & male thread
Drawing: Pressure-temperature diagram
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number PVCGN 506320.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
