Data sheet
Compact cylinders, double acting, piston 16 mm, stroke 10 mm
{{ $t('shop.all.artikelnummer') }}:
NXD 16/10-AG

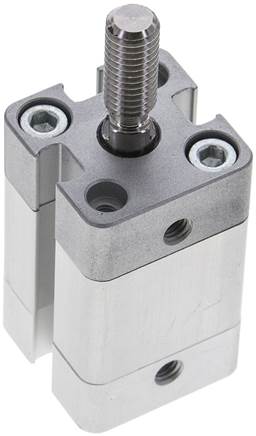

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 16 |
| Stroke [mm] | 10 |
| Version | Piston rod with male thread |
| G2 (piston rod male thread) | M 8 |
| M (compressed air port) | M 5 |
| Repair sets | NXD 16 REP |
| A [mm] | 29 |
| C [mm] | 6 |
| D [mm] | 3,3 |
| E | M 4 |
| F [mm] | 6,0 |
| J [mm] | 38,0 |
| L [mm] | 0 |
| N [mm] | 8,0 |
| O [mm] | 12,25 |
| P [mm] | 18 |
| Q [mm] | 8 |
| T [mm] | 6 |
| U [mm] | 3,5 |
| V [mm] | 20 |
| Z [mm] | 4,5 |
Further information:
| {{ $t('shop.all.gewicht') }} | 105 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571527297 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
Drawing:
Drawing: Compact cylinder UNITOP, standard
Drawing: Piston rod with male thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number NXD 16/10-AG.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
