Data sheet

ISO 6432 cylinders, double acting, piston 25 mm, stroke 65 mm
{{ $t('shop.all.artikelnummer') }}:
ZDPM 25/65

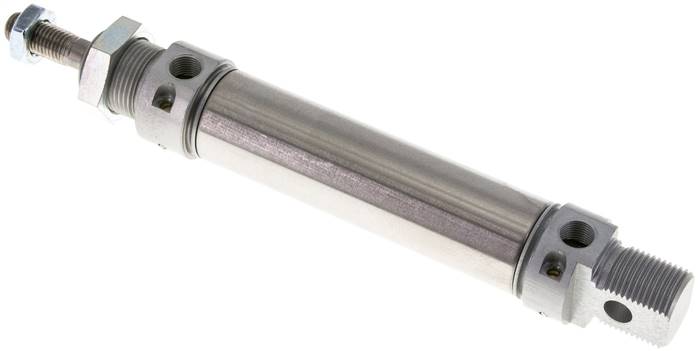

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Piston diameter [mm] 25
Stroke [mm] 65
Version adjustable end position damping
A (piston rod thread) M 10x1,25
B (fastening thread) M 22x1,5
G (compressed air port) G 1/8"
A1 [mm] 10
C [mm] 30
D [mm] 16
E [mm] 8
F [mm] 22
G [mm] 104
K [mm] 28
L [mm] 22
M [mm] 140
N [mm] 12
P [mm] 68
CH [mm] 9
Further information:
{{ $t('shop.all.gewicht') }} 310 g / pcs
{{ $t('shop.all.gtin') }} 4050571814281
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Airtec (WEEE DE94696834 )
Figure
Drawing:
Zeichnung: Rundzylinder ISO 6432
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ZDPM 25/65.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
