Data sheet

Adhesive sockets, check valves, PVC-U/ EPDM, 25mm
{{ $t('shop.all.artikelnummer') }}:
PVCRUCK 25 EPDM

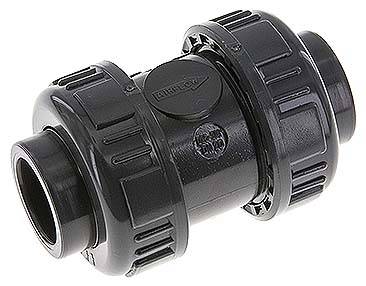

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: PVC-U, spring: 1.4310
Temperature range:
0 to +60 °C
Opening pressure:
max. 0,012 bar
Advantages:
•can be radially assembled or disassembled,
•optimum flow properties
Special quality features:
Check valve, 100% tested
Warning:
Not suitable for compressed air or other gases under pressure!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Seals EPDM
Inner diameter D [mm] 25
L [mm] 92
Flow* [l/min] 194
PN [bar] 0 - 16
Z [mm] 54
Further information:
{{ $t('shop.all.gewicht') }} 170 g / pcs
{{ $t('shop.all.gtin') }} 4050571559571
{{ $t('shop.display.artikel.zollwarennummer') }} 39174000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Check valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number PVCRUCK 25 EPDM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
