Data sheet
Pipe bows type 3, 57,0x2,9mm, 1.4571, seamless, EN 10253 Typ A (DIN 2605)
{{ $t('shop.all.artikelnummer') }}:
W5729A6

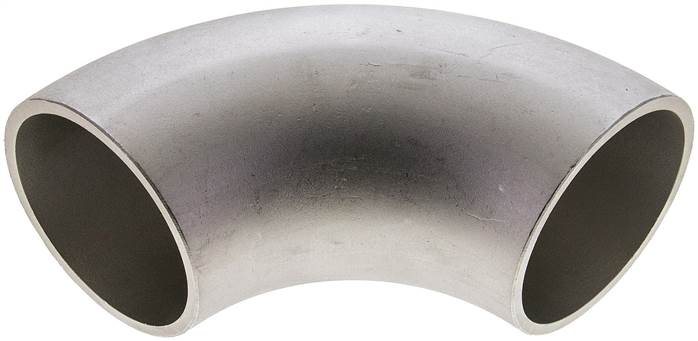

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571* |
| Connection D [mm] | 57,0 |
| Wall thickness S [mm] | 2,9 |
| Version | seamless |
| R [mm] | 75,0 |
| Standard | EN 10253 Typ A (DIN 2605) |
Further information:
| {{ $t('shop.all.gewicht') }} | 460 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571735234 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072310 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Pipe bend 90°
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number W5729A6.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
