Data sheet
Welding sleeve Rp 3"-71mm, 1.4571 (DIN2986-full)
{{ $t('shop.all.artikelnummer') }}:
MUR 30 AS ES

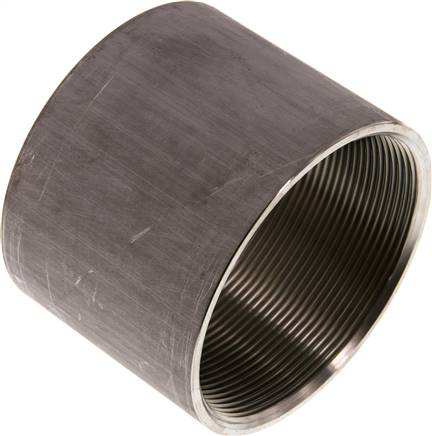

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571 |
| length | full |
| L [mm] | 71 |
| D [mm] | 95,0 |
| Thread | Rp 3" |
Further information:
| {{ $t('shop.all.gewicht') }} | 700 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571509842 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072210 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MUR 30 AS ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
