Data sheet
Pre-welding flared discs DN100-PN10, 114,3x2,5mm, 1.4571
{{ $t('shop.all.artikelnummer') }}:
VB 100-2,5 ES

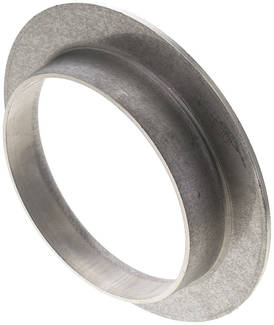

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571 |
| DN [mm] | 100 |
| D [mm] | 114,3 |
| A [mm] | 158 |
| S [mm] | 2,5 |
Further information:
| {{ $t('shop.all.gewicht') }} | 410 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571718220 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
Figure
Drawing:
Kresba: Príruba s privareným hrdlem, DIN 2633, 1.4571
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VB 100-2,5 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
