Data sheet
Bulkhead coupling socket (NW2,7) 4mm hose, Brass
{{ $t('shop.all.artikelnummer') }}:
KDSS 4 NW2,7

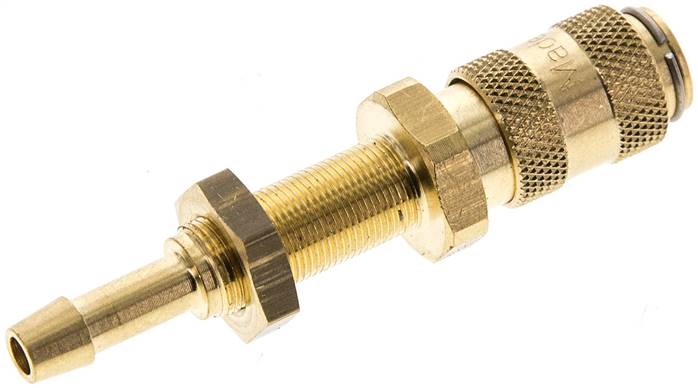

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, nickel-plated brass or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 to 35 bar
Flow*:
165 l/min (Option -BA: 150 l/min)
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Compatible with**:
Rectus (20, 91), Walther (06-003), Festo (KD2/KS2), IMI-Norgren (232), Aventics (CP1-NW 2,7)
Optional:
Can be used for plug shut-off on both sides -BA
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Hose diameter (inner) [mm] | 4 |
| Can be used for plug shut-off on both sides | no |
| A | M 7x0,5 |
| Emax [mm] | 14 |
| Temperature range [°C] | -20 to +100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 17 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571401252 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KDSS 4 NW2,7.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
