Data sheet

Brass ball valve, R 1/4" / Rp 1/4", -0,9 to 50bar
{{ $t('shop.all.artikelnummer') }}:
KH 14 IA KN

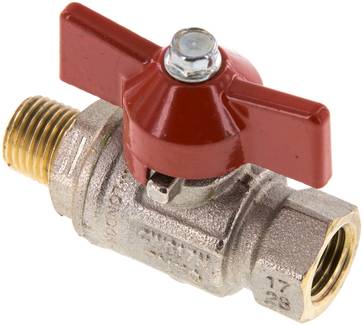

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE / NBR
Temperature range:
-20 to +150 °C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar)
Advantages:
•By purchasing the optional combi handles, you can construct various handle variations: -Standard handle in red, yellow, blue and black, -Butterfly handle in red, yellow, blue, black and green, -Flat steel handle in red, yellow and green (optional: lockable), -Long handle in red
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Butterfly handle
G1 (male thread) R 1/4"
G2 (female thread) Rp 1/4"
DN [mm] 8
L [mm] 56,9
PN [bar] -0.9 to 50
H [mm] 37
R [mm] 24
Replacement handle KOMBI 1 K ROT
Standard handle KOMBI 1 S ROT
butterfly handle KOMBI 1 K ROT
Handle, long KOMBI 1 L ROT
Flat steel handle KOMBI 1 F ROT
Further information:
{{ $t('shop.all.gewicht') }} 125 g / pcs
{{ $t('shop.all.gtin') }} 4050571410261
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Zeichnung: Einschraub-Kugelhahn 2-teilig, voller Durchgang
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 14 IA KN.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
