Data sheet

PVC diaphragm valve (hand) PVC / EPDM, 25mm adhesive socket
{{ $t('shop.all.artikelnummer') }}:
PVCMVH 25 EPDM

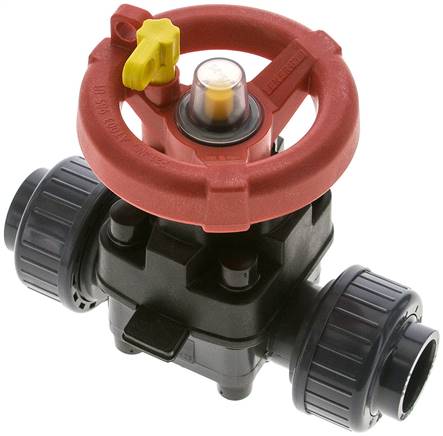

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: PVC, diaphragms: EPDM / FKM
Temperature range:
+10 to +60 °C
Self emptying:
3° - 6° suitable for flow direction and 25° - 33° tilted for horizontal
Warning:
Not suitable for compressed air or other gases under pressure!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Diaphragm material EPDM
Version adhesive socket
Glue socket Inner diameter of diaphragm valve [mm] 25
DN [mm] 20
Further information:
{{ $t('shop.all.gewicht') }} 600 g / pcs
{{ $t('shop.all.gtin') }} 4050571558765
{{ $t('shop.display.artikel.zollwarennummer') }} 84818087
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number PVCMVH 25 EPDM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
