Data sheet

Brass ball valve, R 1-1/2" / Rp 1-1/2", -0,9 to 30bar
{{ $t('shop.all.artikelnummer') }}:
KH 112 IA

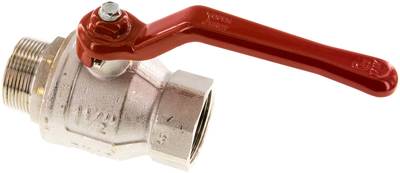

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE / NBR
Temperature range:
-20 to +150 °C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar)
Advantages:
•By purchasing the optional combi handles, you can construct various handle variations: -Standard handle in red, yellow, blue and black, -Butterfly handle in red, yellow, blue, black and green, -Flat steel handle in red, yellow and green (optional: lockable), -Long handle in red
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Standard
G1 (male thread) R 1-1/2"
G2 (female thread) Rp 1-1/2"
DN [mm] 40
L [mm] 121
PN [bar] -0,9 to 30
H [mm] 91
R [mm] 158
Replacement handle KOMBI 5 S ROT
Standard handle KOMBI 5 S ROT
Handle, long KOMBI 5 L ROT
Flat steel handle KOMBI 5 F ROT
Further information:
{{ $t('shop.all.gewicht') }} 1,4 kg / pcs
{{ $t('shop.all.gtin') }} 4050571406653
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Screw-in ball valve, 2-part, full bore
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 112 IA.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
