Data sheet
Tank vehicle coupling closercover, Aluminium for VK 80 MS
{{ $t('shop.all.artikelnummer') }}:
MB 80 A

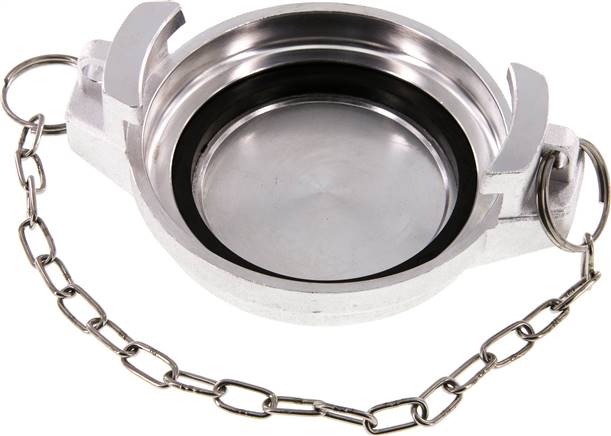

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4408, brass or aluminium, coupling soft seal: CSM (Hypalon) (type aluminium: NBR), thread seal: PTFE (brass type: Polyurethane), chain: 1.4401 (aluminium type: 1.4301)
Temperature range:
-20 to +80 °C
Operating pressure:
max. 16 bar
Scope of delivery:
End cap including chain of stainless steel 1.4401 (type aluminium: chain made of 1.4301)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Aluminium |
| suitable for | VK 80 MS |
Further information:
| {{ $t('shop.all.gewicht') }} | 310 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571163624 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 76090000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MB 80 A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
