Data sheet
Appliance roller, Fixed castor, 75mm
{{ $t('shop.all.artikelnummer') }}:
RO 75 A B

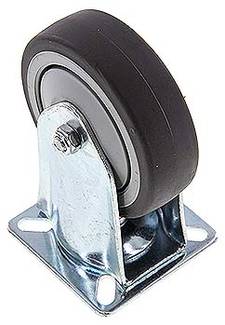

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Properties:
Simple castor design for internal use on smooth floors. Sheet steel housing, galvanised-chromated. Wheels with plastic rim and thermoplastic rubber tyre, Grey
Bearing type:
Ball bearing with thread guard (Ø 50: without thread guard)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Fixed castor |
| Design | Appliance roller |
| Wheel diameter (±3%) [mm] | 75 |
| Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)] | 50 |
| Wheel width [mm] | 24 |
| Height (± 2) [mm] | 103 |
| Plate sizes [mm] | 60 x 60 |
| Borehole removal [mm] | 38 x 38 / 48 x 48 |
| Borehole diameter [mm] | 6,2 |
| Loading (± 2) [mm] | 0 |
Further information:
| {{ $t('shop.all.gewicht') }} | 330 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571598600 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 83022000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RO 75 A B.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
