Data sheet
Appliance roller, Fixed castor, 100mm
{{ $t('shop.all.artikelnummer') }}:
RO 101 A B

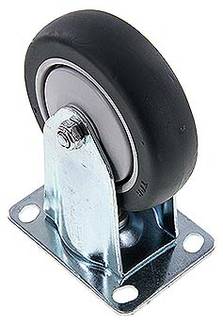

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Properties:
Simple castor design for internal use on smooth floors. Sheet steel housing, galvanised-chromated. Wheels with plastic rim and thermoplastic rubber tyre, Grey
Bearing type:
Ball bearing with thread guard (Ø 50: without thread guard)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Fixed castor |
| Design | Appliance roller |
| Wheel diameter (±3%) [mm] | 100 |
| Load-bearing capacity (static), approx. 30% must be deducted for dynamic loads [kg (Kraft)] | 80 |
| Wheel width [mm] | 30 |
| Height (± 2) [mm] | 137 |
| Plate sizes [mm] | 95 x 70 |
| Borehole removal [mm] | 75 x 45 |
| Borehole diameter [mm] | 9 |
| Loading (± 2) [mm] | 0 |
Further information:
| {{ $t('shop.all.gewicht') }} | 650 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571596545 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 83022000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RO 101 A B.
