Data sheet

Brass mini ball valve G 1/2" Female thread,PN 16
{{ $t('shop.all.artikelnummer') }}:
KH 12 MK

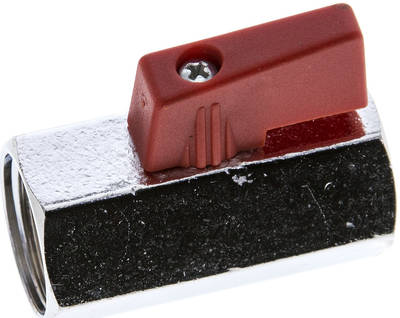

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: chrome-plated brass, ball: nickel-plated brass, seals: PTFE / NBR
Temperature range:
0 to +70 °C (temporarily 0 to +90 °C)
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Female thread
Actuation Butterfly handle
Thread G (inside) G 1/2"
Thread G G 1/2" (female thread)
DN [mm] 10
L [mm] 47
PN [bar] -0.9 to 15
H [mm] 29,5
R [mm] 22
Further information:
{{ $t('shop.all.gewicht') }} 110 g / pcs
{{ $t('shop.all.gtin') }} 4050571408954
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Mini ball valve with female thread, toggle handle
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 12 MK.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
