ADN-12-15-I-P-A (536213) Compact cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO000022

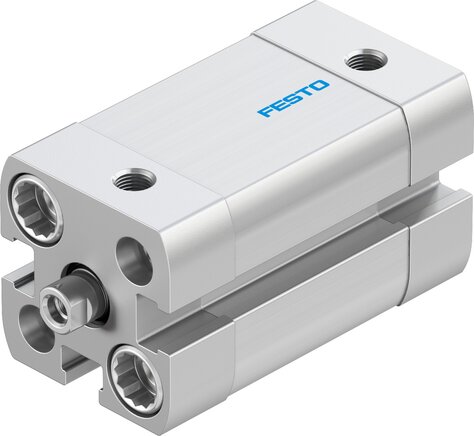

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Note:
Wählen Sie den passenden Festo ADN-Zylinder mithilfe der Filter oder suchen Sie direkt nach der Materialnummer, die auf dem Zylinder angegeben ist. Ein grüner Haken zeigt Ihnen die Lieferfähigkeit des Festo-Zylinders an. Falls Sie Anpassungen wünschen oder beispielsweise eine Montage mit Befestigungsmaterial benötigen, übernehmen wir das gerne für Sie. Kontaktieren Sie uns, damit wir Ihnen bei Ihrer individuellen Konfiguration weiterhelfen können.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Stroke [mm] 15
Piston diameter 12 mm
Piston rod thread M3
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Complies to standard ISO 21287
Piston rod end Female thread
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 1 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
ambient temperature [°C] -20 to 80
Information about operating and control medium [J] 0,07
Theoretical force at 6 bar, Return flow [N] 51
LABS (PWIS) conformity [N] 68
Moving mass at 0 mm stroke [g] 9
Weight supplement per 10 mm stroke [g] 12
Base weight at 0 mm stroke [g] 77
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke [g] 2
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke With throughway bores,
With female thread,
With Accessories,
Selectively:
Pneumatic connection M5
Material information RoHs compliant
Cover material aluminium,
anodized
Seals material TPE-U(PUR)
Material information High-alloyed steel
Material collar screws Aluminium wrought alloy,
Smooth anodised
Further information:
{{ $t('shop.all.gewicht') }} 80 g / pcs
{{ $t('shop.all.gtin') }} 4052568087210
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.all.hersteller') }} Festo
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO000022.
