ADVU-12-30-P-A (156505) Compact cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO001661

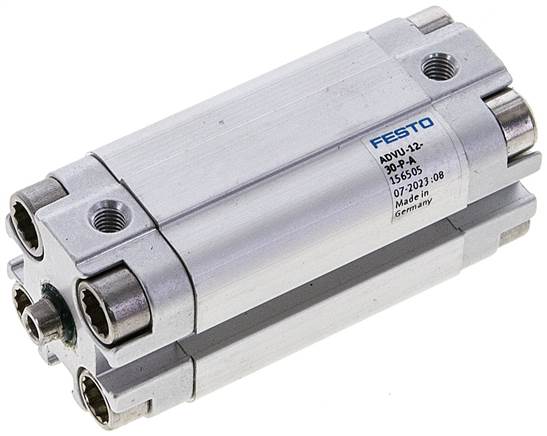

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Stroke [mm] | 30 |
| Piston diameter | 12 mm |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Principle of operation | double acting |
| Piston rod end | Female thread |
| Construction set up |
Piston, piston rod |
| Position detection | For proximity switch |
| Variants | One-sided piston rod |
| Operating pressure [bar] | 1.2 to 10 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| ambient temperature [°C] | -20 to 80 |
| Impact energy at the end positions [J] | 0,07 |
| Theoretical force at 6 bar, Return flow [N] | 51 |
| Theoretical force at 6 bar, flow [N] | 68 |
| Moving mass at 0 mm stroke [g] | 8 |
| Weight supplement per 10 mm stroke [g] | 15 |
| Base weight at 0 mm stroke [g] | 87 |
| Supplement moved mass per 10 mm stroke [g] | 2 |
| Fastening type |
With throughway bores, With Accessories, Selectively: |
| Pneumatic connection | M5 |
| Flush screw material | High-alloyed stainless steels |
| Cover material | Aluminium wrought alloy |
| Dynamic seals material |
NBR, TPE-U(PU) |
| Piston rod material | High-alloyed stainless steels |
| Cylinder tube material | Aluminium wrought alloy |
Further information:
| {{ $t('shop.all.gewicht') }} | 135 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568071080 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO001661.
