Data sheet
ADVUL-25-40-P-A (156872) Compact cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO002027

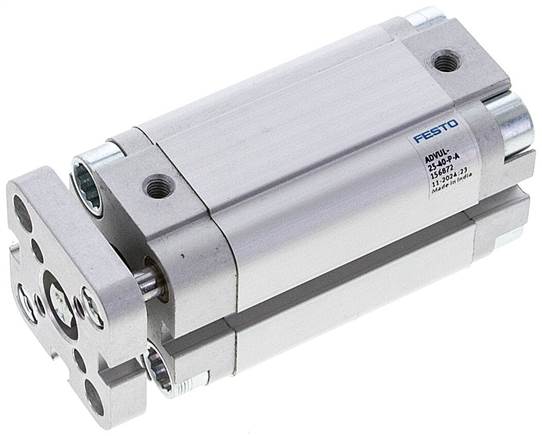

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Stroke [mm] | 40 |
| Piston diameter | 25 mm |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Construction set up |
Piston, piston rod |
| Position detection | For proximity switch |
| Variants | One-sided piston rod |
| Anti-twist lock / guide | Guide rod with yoke |
| Operating pressure [bar] | 1 to 10 |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Information about operating and control medium [°C] | -20 to 80 |
| Impact energy at the end positions [J] | 0,10 |
| LABS (PWIS) conformity [N] | 247 |
| Theoretical force at 6 bar, flow [N] | 295 |
| Fastening type |
With throughway bores, With Accessories, Selectively: |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | M5 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | Zinc plated steel |
| Cover material | Aluminium wrought alloy |
| Dynamic seals material |
NBR, TPE-U(PU) |
| Material collar screws | High-alloyed stainless steels |
| Cylinder tube material | Aluminium wrought alloy |
Further information:
| {{ $t('shop.all.gewicht') }} | 350 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568121242 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO002027.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
