Podatkovni list

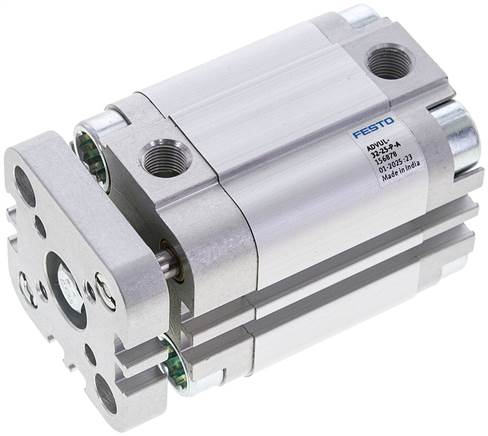

ADVUL-32-25-P-A (156878) Compact cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO002041
Vzorčni prikaz
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Stroke [mm] | 25 |
| Piston diameter | 32 mm |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Construction set up |
Piston, piston rod |
| Position detection | For proximity switch |
| Variants | One-sided piston rod |
| Anti-twist lock / guide | Guide rod with yoke |
| Operating pressure [bar] | 1 to 10 |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Information about operating and control medium [°C] | -20 to 80 |
| Impact energy at the end positions [J] | 0,40 |
| LABS (PWIS) conformity [N] | 415 |
| Theoretical force at 6 bar, flow [N] | 483 |
| Fastening type |
With throughway bores, With Accessories, Selectively: |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | G1/8 |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | Zinc plated steel |
| Cover material | Aluminium wrought alloy |
| Dynamic seals material |
NBR, TPE-U(PU) |
| Material collar screws | High-alloyed stainless steels |
| Cylinder tube material | Aluminium wrought alloy |
Dodatne informacije:
| {{ $t('shop.all.gewicht') }} | 490 g / Kos |
| {{ $t('shop.all.gtin') }} | 4052568121297 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.all.hersteller') }} | Festo |
Slika
Več informacij o tem artiklu in možnostih naročanja najdete v naši spletni trgovini https://www.landefeld.de pod številko artikla OT-FESTO002041.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Nemčija
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Stanje: 08.12.2025
