Data sheet
Eco-Line sub-microfilter, G 1/4", drain manual
{{ $t('shop.all.artikelnummer') }}:
EAFD 2000-02

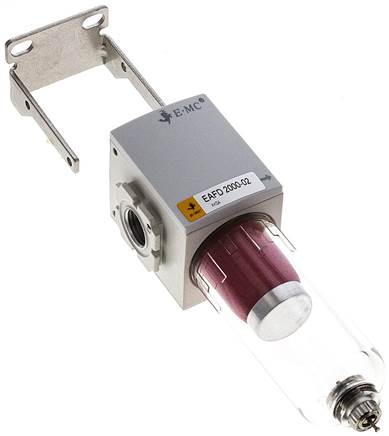

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Sub-microfilters are used where high demands are placed on the purity of the compressed air. Micro-particles (> 0.01 µm) and oil mist are separated here. We recommend connecting an upstream microfilter to increase the service life.
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Condensate draining:
semi-automatic**
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0,01 mg/m³
Erreichbare Druckluftqualität (ISO 8573-1):
[1:4:2] (ohne Kältetrockner: [1:7:2])
Media:
Compressed air, neutral gases
Scope of delivery:
Sub-microfilter including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Eco-Line 2A |
| Thread | G 1/4" |
| Container design | Plastic container |
| Condensate drain | Manually |
| Flow* [l/min] | 200 |
| L [mm] | 43 |
| H [mm] | 127 |
| H1 [mm] | 25 |
| Coupling kit | KP EA2000 |
| Replacement filter | EAFD 2000 FIL |
Further information:
| {{ $t('shop.all.gewicht') }} | 195 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571940591 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number EAFD 2000-02.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
