Data sheet

Brass ball valve, G 1", PN 40, fastening thread 2x M 8
{{ $t('shop.all.artikelnummer') }}:
KH 6402 10

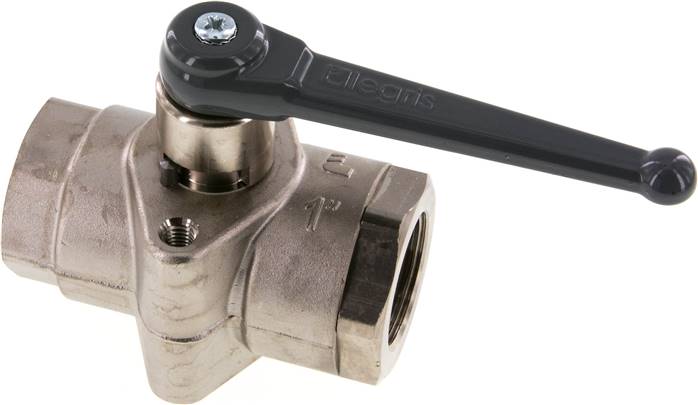

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: polished brass, seal: PA / NBR
Temperature range:
-20 to +80 °C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.98 bar)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
G G 1"
DN [mm] 23
L [mm] 94
PN [bar] -0.98 to 40
H [mm] 56
H1 [mm] 53
R [mm] 108
A [mm] 51
Mounting thread 2x M 8
Further information:
{{ $t('shop.all.gewicht') }} 1,3 kg / pcs
{{ $t('shop.all.gtin') }} 4050571422301
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Ball valve with mounting thread
Drawing: Ball valve with mounting thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 6402 10.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
