Podatkovni list
AEVC-16-10-I-P-A (188097) Short-stroke cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO003940

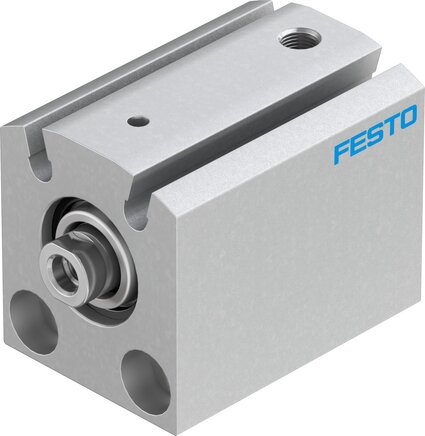

Vzorčni prikaz
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Stroke [mm] | 10,0 |
| Piston diameter | 16 mm |
| Spring return force for retracted piston rod [N] | 5 |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Principle of operation |
Pressing, single action |
| Construction set up |
Piston, piston rod |
| Position detection | For proximity switch |
| Operating pressure [bar] | 1.5 to 10 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| ambient temperature [°C] | -20 to 80 |
| Theoretical force at 6 bar, flow [N] | 112,0 |
| Moving mass [g] | 17,00 |
| Fastening type |
With throughway bores, With Accessories, Selectively: |
| Pneumatic connection | M5 |
| Material information | Copper and PTFE-free |
| Cover material |
Aluminium wrought alloy, anodized |
| Seals material | TPE-U(PU) |
| Housing material |
Aluminium wrought alloy, anodized |
| Piston rod material | High-alloyed steel |
Dodatne informacije:
| {{ $t('shop.all.gewicht') }} | 85 g / Kos |
| {{ $t('shop.all.gtin') }} | 4052568076856 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.all.hersteller') }} | Festo |
Slika
Več informacij o tem artiklu in možnostih naročanja najdete v naši spletni trgovini https://www.landefeld.de pod številko artikla OT-FESTO003940.
