DZF-12-80-A-P-A (161228) Flat cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO006693

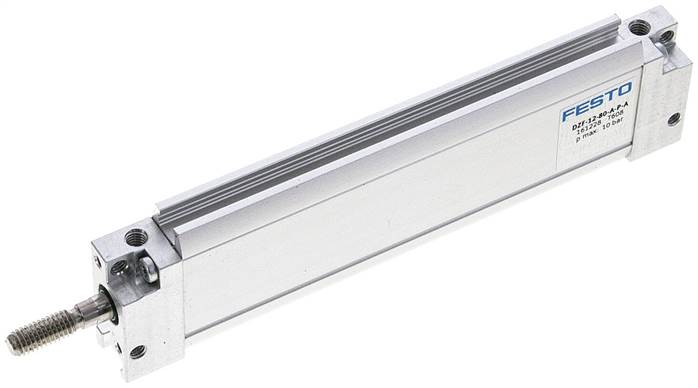

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Stroke [mm] 80
Piston diameter Equivalent diameter,
12 mm
Max. twist angle of the piston rod ± [deg] 2,5
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Principle of operation double acting
Construction set up Piston,
piston rod
Position detection For proximity switch
Anti-twist lock / guide Oval piston
Operating pressure [bar] 1.6 to 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
ambient temperature [°C] -20 to 80
Information about operating and control medium [Nm] 0,1
Theoretical force at 6 bar, Return flow [N] 51
LABS (PWIS) conformity [N] 68
Moving mass at 0 mm stroke [g] 12
Weight supplement per 10 mm stroke [g] 9
Base weight at 0 mm stroke [g] 96
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke [g] 2
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke With female thread,
With Accessories,
Selectively:
Pneumatic connection M5
Cover material Aluminium wrought alloy
Seals material NBR,
TPE-U(PU)
Housing material aluminium,
Smooth anodised
Piston rod material High-alloyed stainless steels
Further information:
{{ $t('shop.all.gewicht') }} 150 g / pcs
{{ $t('shop.all.gtin') }} 4052568128524
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.all.hersteller') }} Festo
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO006693.
