Data sheet

DZH-25-50-PPV-A (151123) Flat cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO006900

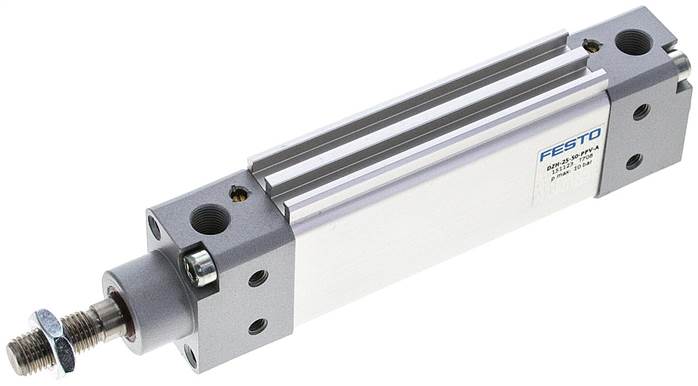

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Stroke [mm] 50
Piston diameter 25 mm,
Equivalent diameter
Max. twist angle of the piston rod ± [deg] 2,40
Dampening PPV: Pneumatic dampening both sides adjustable
installation position arbitrary
Principle of operation double acting
Construction set up Piston,
piston rod
Position detection For proximity switch
Anti-twist lock / guide Oval piston
Operating pressure [bar] 1 to 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 - moderate corrosion stress
Information about operating and control medium [°C] -20 to 80
Dampening length [mm] 17
LABS (PWIS) conformity [Nm] 0,8
Theoretical force at 6 bar, Return flow [N] 247,0
Theoretical force at 6 bar, flow [N] 295
Weight supplement per 10 mm stroke [g] 21
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke [g] 330
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke With female thread,
With Accessories,
Selectively:
Pneumatic connection G1/8
Material information RoHs compliant
Cover material Aluminium
Seals material TPE-U(PU)
Material information Aluminium
Piston rod material High-alloyed steel
Further information:
{{ $t('shop.all.gewicht') }} 410 g / pcs
{{ $t('shop.all.gtin') }} 4052568010515
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.all.hersteller') }} Festo
Figure
