Data sheet

EG-6-15-PK-3 (15893) Round cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO007013

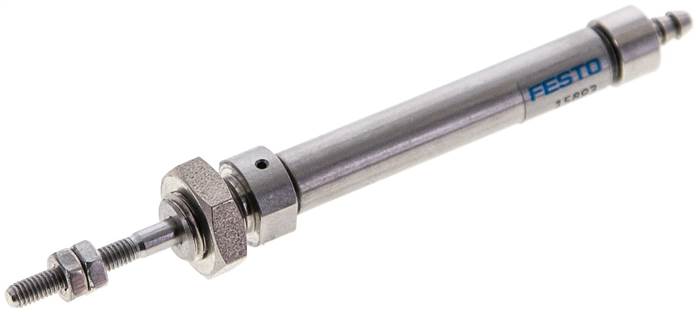

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Stroke [mm] 15
Piston diameter 6 mm
Dampening one sided,
Cannot be set
installation position arbitrary
Construction set up Piston,
piston rod,
cylinder tube
Position detection without
Variants One-sided piston rod
Operating pressure [bar] 3 to 7
Principle of operation Pressing,
single action
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Corrosion resistant class KBK 1 - low corrosion stress
ambient temperature [°C] 5 to 60
LABS (PWIS) conformity [N] 11,8
Theoretical minimum spring rest force [N] 2,0
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke [N] 5,2
Theoretical max. spring return force With locking nut
Pneumatic connection PK-3
Material information RoHs compliant
Cover material High-alloyed steel
Material information NBR
Piston rod material High-alloyed stainless steels
Cylinder tube material High-alloyed stainless steels
Further information:
{{ $t('shop.all.gewicht') }} 21 g / pcs
{{ $t('shop.all.gtin') }} 4052568066727
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.all.hersteller') }} Festo
Figure
