Data sheet
HPV-14-20-A (529351) Feed separator
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO007280

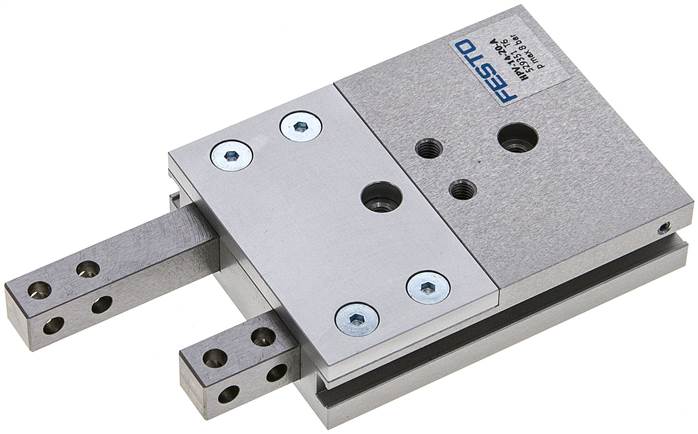

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Stroke [mm] | 20 |
| Piston diameter | 14 mm |
| Max. exchange precision [mm] | 0,3 |
| Max. tappet play Sx [mm] | 0,05 |
| Max. tappet play Sz [mm] | 0,03 |
| Max. gripper jaw play ax [deg] | 0,12 |
| Max. gripper jaw play ay [deg] | 0,20 |
| Max. gripper jaw play az [deg] | 0,175 |
| Fastening external finger | throughway bores |
| Dampening | No dampening |
| installation position | arbitrary |
| Principle of operation | double acting |
| Construction set up |
Double piston, piston rod, Blocking pusher, non-rotating |
| Position detection | For proximity switch |
| Half cycle [ms] | 111,5 |
| Anti-twist lock / guide | Square guide |
| Cycle time [ms] | 223,0 |
| Operating pressure [bar] | 3 to 8 |
| Minimum product distance due to proximity switches | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Proximity switch protrusion | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| ambient temperature [°C] | 5 to 60 |
| Max. force on the finger Fz static [N] | 100 |
| Max. torque on finger Mr static [Nm] | 5 |
| Information about operating and control medium [Nm] | 5 |
| Max. torque on finger My static [Nm] | 5 |
| LABS (PWIS) conformity [N] | 75 |
| Theoretical force at 6 bar, flow [N] | 90 |
| Max. mass per external griper finger [g] | 150 |
| Alternative connections | M5 |
| Fastening type |
Selectively:, Female thread and centring sleeve, With Throughway bore and centring sleeve |
| Pneumatic connection | M5 |
| Material information | Copper and PTFE-free |
Further information:
| {{ $t('shop.all.gewicht') }} | 330 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568015657 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84798997 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
