Data sheet

SLS-10-5-P-A (170491) Mini slide
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO007492

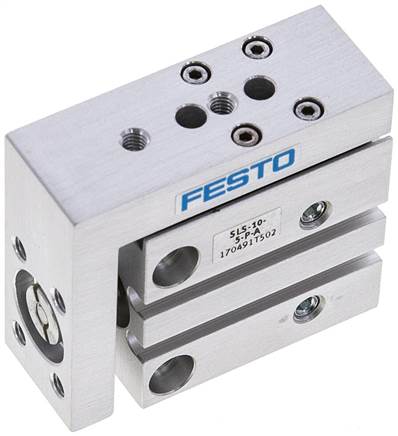

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Stroke [mm] 5
Piston diameter 10 mm
Operating mode, drive unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide Ball cage guide
Construction set up Joch,
Kolben,
Kolbenstange,
Schlitten,
Kugel-Käfigführung
Position detection For proximity switch
Operating pressure [bar] 1 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 0 - No corrosion stressing
ambient temperature [°C] -20 to 60
Information about operating and control medium [J] 0,050
Max. force Fy [N] 220
LABS (PWIS) conformity [N] 220
Max. torque Mx [Nm] 0,6
Max. torque My [Nm] 0,6
Max. torque Mz [Nm] 0,5
Theoretical force at 6 bar, Return flow [N] 39
Theoretical force at 6 bar, flow [N] 47
Moving mass [g] 41
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke See product drawing
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke With throughway bores
Pneumatic connection M5
Material information Copper and PTFE-free
Cover material Aluminium wrought alloy
Seals material HNBR
Housing material Aluminium wrought alloy
Material information High-alloyed stainless steels
Further information:
{{ $t('shop.all.gewicht') }} 150 g / pcs
{{ $t('shop.all.gtin') }} 4052568138974
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.all.hersteller') }} Festo
Figure
