Data sheet

Coupling plug (NW10) G 1/2"(male thread), Stainless steel
{{ $t('shop.all.artikelnummer') }}:
KSG 12 NW10 ES

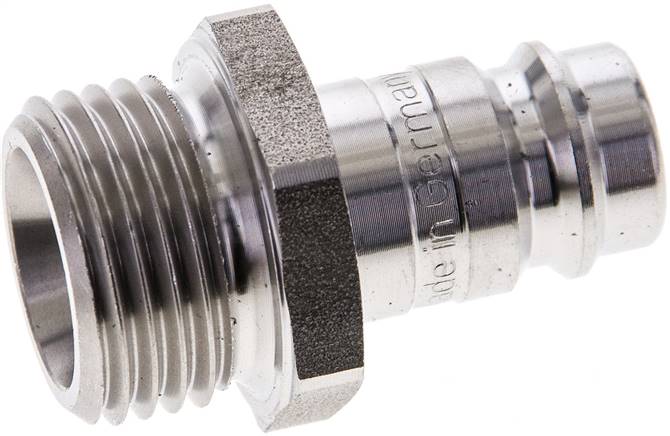

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Type nickel-plated brass: Body: nickel-plated brass, sliding sleeve: nickel-plated steel, seal: NBR
Type brass/steel: Body: nickel-plated bras/steel (QPQ), sliding sleeve: nickel-plated brass, seal: NBR
Type stainless steel: Body and sliding sleeve: 1.4305, seal: FKM
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 to 35 bar
Compatible with**:
Rectus (27, 41, 1700, 1727), TEMA (1700), CEJN (410)
Flow****:
Nickel-plated brass/M 1.4305: 2150 l/min (option: -BA: 1020 l/min), brass/steel: 3600 l/min
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Optional:
Body made from 1.4404 -ES4A, with valve for double-sided shut-off -BA
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Stainless steel
Thread external G 1/2"
shut-off on both sides no
Temperature range [°C] -20 to +200
Further information:
{{ $t('shop.all.gewicht') }} 45 g / pcs
{{ $t('shop.all.gtin') }} 4050571447977
{{ $t('shop.display.artikel.zollwarennummer') }} 73269098
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KSG 12 NW10 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
