Data sheet
3/2-way pneumatic pulse valve, M 5, / Standard
{{ $t('shop.all.artikelnummer') }}:
L 25 320

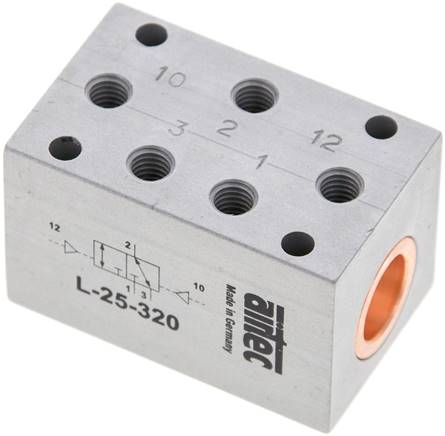

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium, internal parts: aluminium and stainless steel, seals: plastic and NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Optional:
ATEX approval II 2GD c T5 T100°C, TMedium/Tamb: -10°C to max. +50°C -X
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| Thread (2x) | M 5 |
| Thread exhaust air (1x) | M 5 |
| Thread control connection (2x) | M 5 |
| Nominal width [mm] | 3,2 |
| flow [l/min] | 160 |
| Operating pressure [bar] | 0 - 10 |
| Control pressure [bar] | 2 - 10 |
Further information:
| {{ $t('shop.all.gewicht') }} | 70 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571459635 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number L 25 320.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
