Data sheet
Screw connection, L banjo G 1/8"-4,3x3mm, Nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
LK 183 MSV

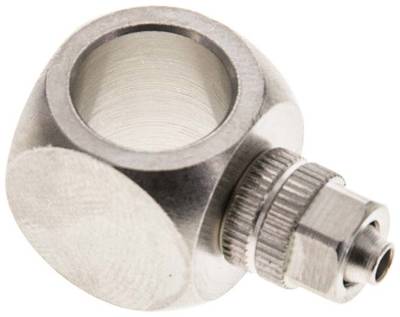

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Nickel-plated brass |
| for Banjo bolt | G 1/8" |
| Hose diameter (outer x inner) [mm] | 4,3x3 |
| H [mm] | 14,6 |
Further information:
| {{ $t('shop.all.gewicht') }} | 15 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571467210 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number LK 183 MSV.
