Data sheet
SIED-M30B-ZS-K-L-PA (538340) Proximity sensor
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO013391

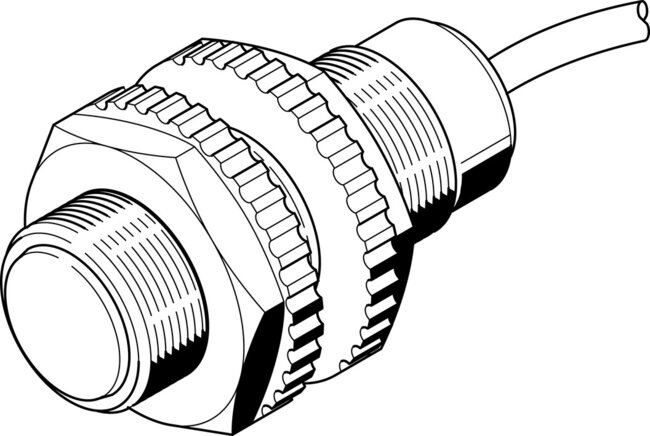

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Design | round |
| Complies to standard | EN 60947-5-2 |
| Permission |
RCM mark, c UL us - Listed (OL) |
| CE certificate (see declaration of conformity) |
to EU EMC directive, to EU low voltage directive |
| Material information | Copper and PTFE-free |
| Measurement principle | Inductive |
| Measurement switching distance [mm] | 10 |
| Secured safety distance [mm] | 8,10 |
| Reduction factors |
Aluminium = 0.35 - 0.5, Stainless steel St 18/8 = 0.6 - 1.0, Copper = 0.25 - 0.45, Brass = 0.35 - 0.5, Steel pc. 37 = 1.0 |
| ambient temperature [°C] | -25 to 70 |
| Repeatability [mm] | 0,20 |
| Control output | Contactless 2-wire |
| Switching element function | NO contact |
| Hysteresis [mm] | 0.3 to 1.5 |
| Max. switching frequency DC [Hz] | 60 |
| Max. switching frequency AC [Hz] | 20 |
| Max. output current [mA] | 300 |
| Voltage drop [V] | <= 6 V |
| Minimum load current [mA] | 3 |
| Short circuit resistance | no |
| Operating voltage range AC [V] | 20 to 250 |
| Operating voltage range DC [V] | 10 to 300 |
| Network frequency [Hz] | 50 to 60 |
| Empty run current [mA] | <= 1,5 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection |
2-wire, cable |
| size | M30 |
| Fastening type | With locking nut |
| Torque [Nm] | 5 |
| Integration type | flush |
| Housing material | PA reinforced |
| Switching status indicator | LED yellow |
| Protection category |
IP65, IP67 |
| Corrosion resistant class KBK | 4 - particularly severe corrosion stress |
| LABS (PWIS) conformity [MTR] | 2,5 |
| Cable sleeve material | PVC |
| Insulation sleeve material | PVC |
| Ambient temperature for moving cable placements [°C] | 0 to 70 |
Further information:
| {{ $t('shop.all.gewicht') }} | 170 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568175900 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
