Data sheet
SIM-M8-4GD-2,5-PU (158960) connecting cable
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO013578

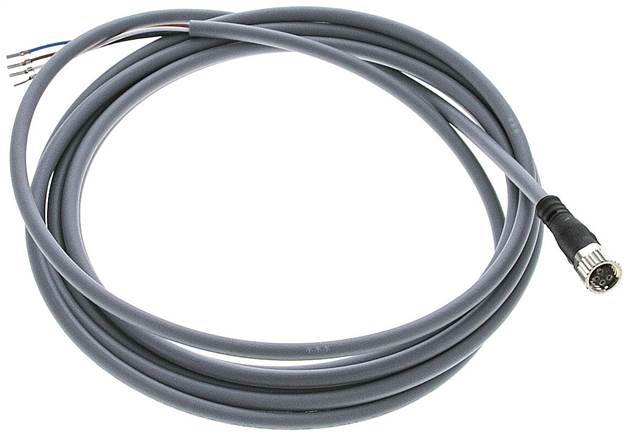

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Complies to standard |
EN 61076-2-104, EN 61984 |
| Electrical connection |
M8x1 / -, 4-pin / 4-wire, Straight socket / Open end |
| Operating voltage range DC [V] | 0 to 30 |
| Operating voltage range AC [V] | 0 to 30 |
| Current carrying capacity at 40°C [A] | 4,0 |
| Surge voltage strength [kV] | 0,8 |
| Cable length [MTR] | 2,5 |
| Line properties | Standard |
| Test conditions line |
Bending radius strength to Festo standard, Cable track: 5 million cycles, bending radius 75 mm, Test conditions on request |
| Cable diameter [mm] | 4,5 |
| Cable set up | 4x0,25 |
| Conductor - nominal cross-section [mm²] | 0,25 |
| Colour code wire insulation |
blue, brown, black, White |
| Protection category |
IP65, IP68 |
| ambient temperature [°C] | -25 to 80 |
| Ambient temperature for moving cable placements [°C] | -5 to 80 |
| CE certificate (see declaration of conformity) | nach EU-RoHS-RL |
| Material information |
Halogenfrei, RoHS konform, phosphorsäureester frei |
| Degree of contamination | 3 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Cable sleeve material | TPE-U(PU) |
| Cable shield colour | Grey |
| Housing material | TPE-U(PU) |
| Housing colour | black |
| Locking nut material |
brass, nickel-plated |
| Seals material | NBR |
| Plug contacts material | brass, Gold plated |
| Insulation sleeve material | PP |
Further information:
| {{ $t('shop.all.gewicht') }} | 75 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568035297 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85444290 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
