Data sheet
KS4-1/2-A (531676) Quick coupling plug
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO014211

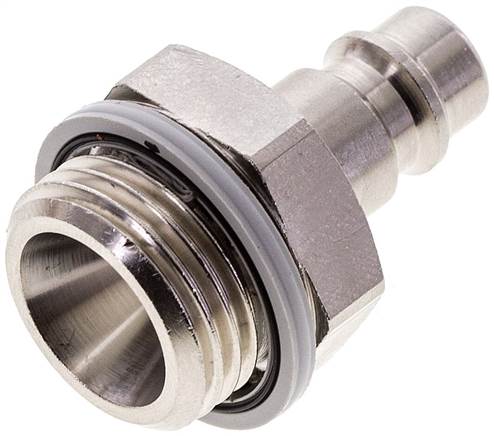

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Nominal width [mm] | 7,85 |
| Operating pressure complete temperature range [bar] | -0.95 to 12 |
| Normal nominal flow [l/min] | 1.301 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Information about operating and control medium | Oiled operation possible |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| ambient temperature [°C] | -10 to 60 |
| Pneumatic connection 1 | Male thread G1/2 |
| Material information | RoHs compliant |
| Nominal tightening torque [Nm] | 32,50 |
| Tolerance to nominal tightening torque | ± 20 % |
Further information:
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568047870 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO014211.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
