Data sheet

LRPS-1/4-4 (194692) Precision pressure re
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO019046

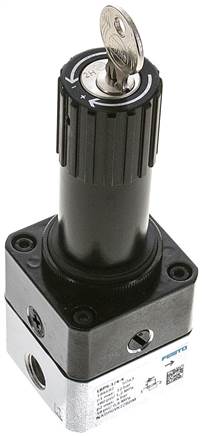

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Actuation fuse Rotary button with integrated lock
installation position arbitrary
Construction set up Pre-control precision membrane control valve
Controller function Output pressure constant,
With relieving
pressure display G1/8 prepared
Operating pressure [bar] 1 to 12
Pressure regulation range [bar] 0.05 to 4
Max. pressure hysteresis [bar] 0,02
Normal nominal flow [l/min] 2.000
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4],
Inert gases
Information about operating and control medium Oiled operation not possible
Standard nominal flow rate (standardised to DINa1343) [°C] -10 to 60
ambient temperature [°C] -10 to 60
LABS (PWIS) conformity Front panel integration,
pipe installation,
With Accessories
Pneumatic connection 1 G1/4
Pneumatic connection 2 G1/4
Material information RoHs compliant
Seals material NBR
Housing material Aluminium
Further information:
{{ $t('shop.all.gewicht') }} 430 g / pcs
{{ $t('shop.all.gtin') }} 4052568154240
{{ $t('shop.display.artikel.zollwarennummer') }} 84811099
{{ $t('shop.all.hersteller') }} Festo
Figure
