Data sheet

Sleeves, shut-off valve, red bronze/brass G 1",PN 16
{{ $t('shop.all.artikelnummer') }}:
MUA 10

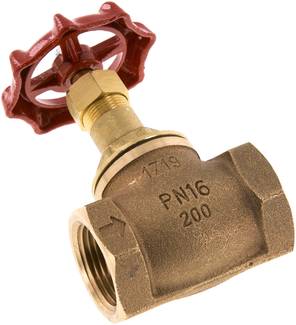

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: gunmetal, upper part: brass, sealing seat: PTFE
Temperature range:
-10 to +170 °C (saturated steam: 7 bar)
Media:
Liquids, air, heating and hydraulic oils, fuels, water, and saturated steam
{{ $t('shop.display.artikel.eigenschaften_headline') }}
G G 1"
DN [mm] 21,5
L [mm] 70
PN [bar] 0 - 16
H [mm] 112
R [mm] 65
Further information:
{{ $t('shop.all.gewicht') }} 600 g / pcs
{{ $t('shop.all.gtin') }} 4050571507817
{{ $t('shop.display.artikel.zollwarennummer') }} 84818069
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Sleeve shut-off valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MUA 10.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
