Data sheet

Y-socket shut-off valve, G 1-1/2", PN 40, stainless steel
{{ $t('shop.all.artikelnummer') }}:
MUA 112 SS ES

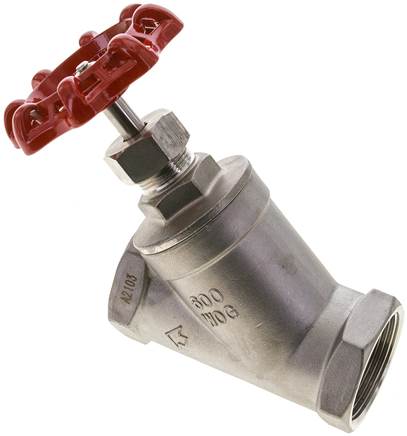

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4408, spindle seal: PTFE, sealing seat: PTFE, handwheel: Aluminium (only silicone-free seals and lubricants are used during assembly)
Temperature range:
-20 to +200 °C
Media:
Water, oil, compressed air
Optional:
Certificate 3.1
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Standard
G G 1-1/2"
DN [mm] 36
L [mm] 110
PN [bar] 0 - 40
H [mm] 141
R [mm] 83
replacement handwheel MUA 112 SS ES RAD
Further information:
{{ $t('shop.all.gewicht') }} 1,3 kg / pcs
{{ $t('shop.all.gtin') }} 4050571507961
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Angle seat socket shut-off valve (stainless steel)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MUA 112 SS ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
