Data sheet
Needle shut-off valve, brass, G 1/2" (IG), -0,9 to 40bar
{{ $t('shop.all.artikelnummer') }}:
NADEL 12

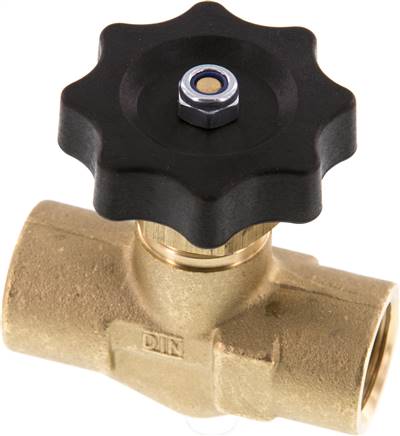

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, seal of spindle: NBR (G 3/4"- G 2": PTFE), sealing seat: metallic sealing
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Female thread |
| Thread | G 1/2" (female thread) |
| DN [mm] | 11 |
| L [mm] | 64 |
| PN [bar] | -0,9 to 40 |
| Temperature range [°C] | -30 to +110 |
Further information:
| {{ $t('shop.all.gewicht') }} | 300 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571520571 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number NADEL 12.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
