Data sheet
Short-stroke cylinders, double acting, piston 16 mm, stroke 20 mm
{{ $t('shop.all.artikelnummer') }}:
ND 16/20

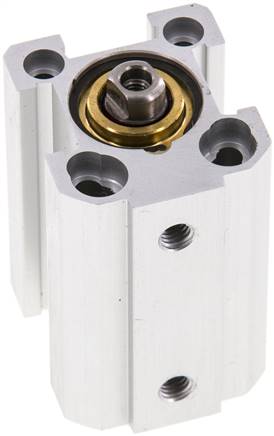

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and base plate: Anodised aluminium / brass, cylinder tube: Anodised aluminium, piston rod: 1.4305 seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Cylinder switch type:
G
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 16 |
| Stroke [mm] | 20 |
| Version | without magnetic piston |
| C1 (piston rod thread) | M 4 |
| P (compressed air port) | M 5 |
| Repair sets | ND 16 REP |
| A [mm] | 34,0 |
| B [mm] | 30 |
| D [mm] | 8 |
| F [mm] | 4,7 |
| G [mm] | 7,5 |
| H [mm] | 19,0 |
| I [mm] | 18 |
| J [mm] | 8,0 |
| L [mm] | 27,0 |
| M [mm] | 12,0 |
| N [mm] | 20,0 |
| O [mm] | 10,0 |
| Q [mm] | 4,6 |
| R [mm] | 3,5 |
| S [mm] | 32,0 |
| T [mm] | 8 |
| V [mm] | 6 |
| W [mm] | 4,5 |
Further information:
| {{ $t('shop.all.gewicht') }} | 90 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571522865 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84799070 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Short-stroke cylinder
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ND 16/20.
