Flow control silencers, cylindrical thread, Standard

Description

Functional principle:
Flow control silencers choke the flow in one direction, while the flow remains unrestricted in the other direction. The standard construction of the flow control silencers is “exhaust air flow controlling”. If they are screwed into a cylinder, for example, then they provide for an even flow without causing a slip-stick effect. In the case of cylinders with small volumes (a small diameter/low stroke rate), flow control silencers are utilised with the special “supply air flow controlling” construction.

Media:
Compressed air, neutral gases

Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)

Temperature range:
-20°C bis +80°C

Operating pressure:
-0,95 bis 20 bar

Advantages:
•Compact design, •Can be easily adjusted without tools

Find the right item

Version
G
D [mm]

Flow control silencers, cylindrical thread, Standard: 20 of 32 items

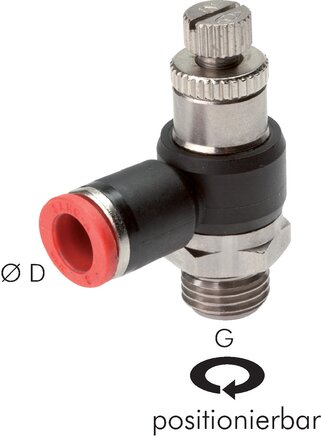

Elbow one-way flow control M 5-4mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    M 5

  • D [mm]

    4

Immediately available

12,04 €

Elbow one-way flow control M 5-6mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    M 5

  • D [mm]

    6

Immediately available

12,04 €

Elbow one-way flow control G 1/8"-4mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/8"

  • D [mm]

    4

Immediately available

12,04 €

Elbow one-way flow control G 1/8"-6mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/8"

  • D [mm]

    6

Immediately available

12,04 €

Elbow one-way flow control G 1/8"-8mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/8"

  • D [mm]

    8

Immediately available

12,04 €

Elbow one-way flow control G 1/4"-4mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/4"

  • D [mm]

    4

Immediately available

13,46 €

Elbow one-way flow control G 1/4"-6mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/4"

  • D [mm]

    6

Immediately available

13,46 €

Elbow one-way flow control G 1/4"-8mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/4"

  • D [mm]

    8

Immediately available

13,46 €

Elbow one-way flow control G 1/4"-10mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/4"

  • D [mm]

    10

Immediately available

13,46 €

Elbow one-way flow control G 3/8"-6mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 3/8"

  • D [mm]

    6

Immediately available

17,95 €

Elbow one-way flow control G 3/8"-8mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 3/8"

  • D [mm]

    8

Immediately available

17,95 €

Elbow one-way flow control G 3/8"-10mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 3/8"

  • D [mm]

    10

Immediately available

17,95 €

Elbow one-way flow control G 3/8"-12mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 3/8"

  • D [mm]

    12

Immediately available

26,32 €

Elbow one-way flow control G 1/2"-8mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/2"

  • D [mm]

    8

Immediately available

27,59 €

Elbow one-way flow control G 1/2"-10mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/2"

  • D [mm]

    10

Immediately available

29,63 €

Elbow one-way flow control G 1/2"-12mm,exhaust air flow controlling (Standard)
  • Version

    exhaust air flow controlling (Standard)

  • G

    G 1/2"

  • D [mm]

    12

Immediately available

23,41 €

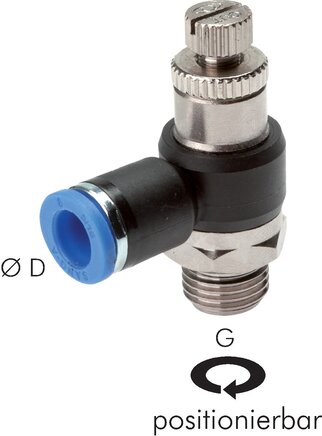

Elbow one-way flow control M 5-4mm,Supply air flow controlling
  • Version

    Supply air flow controlling

  • G

    M 5

  • D [mm]

    4

Immediately available

12,04 €

Elbow one-way flow control M 5-6mm,Supply air flow controlling
  • Version

    Supply air flow controlling

  • G

    M 5

  • D [mm]

    6

Immediately available

12,04 €

Elbow one-way flow control G 1/8"-4mm,Supply air flow controlling
  • Version

    Supply air flow controlling

  • G

    G 1/8"

  • D [mm]

    4

Immediately available

12,04 €

Elbow one-way flow control G 1/8"-6mm,Supply air flow controlling
  • Version

    Supply air flow controlling

  • G

    G 1/8"

  • D [mm]

    6

Immediately available

12,04 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
