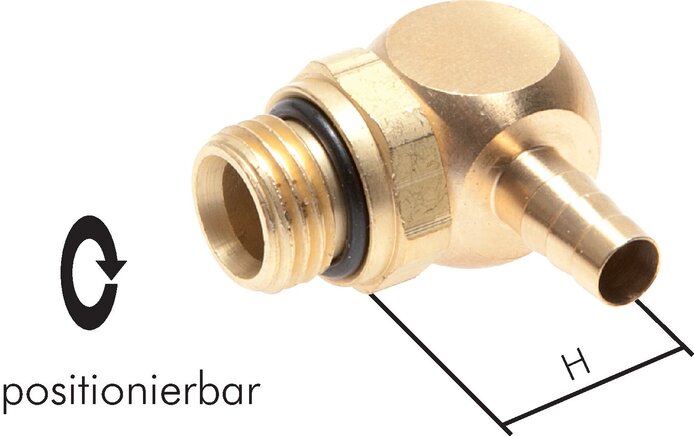

Rotatable L-push on fittings for PU-, PUN- and PA hose

Description

Materials:
Body: brass, seal: NBR

Temperature range:
-20°C bis +60°C

Assembly:
Push the tube on until it reaches the stop.

Dismounting:
Remove PU/cut open hose

Operating pressure:
PA-Schlauch: 10 bar, PU-Schlauch: 6 bar. (Ohne Zugbelastung).

Find the right item

Thread
Hose Ø inside [mm]
H [mm]
SW [mm]

Rotatable L-push on fittings for PU-, PUN- and PA hose: 7 of 7 items

Angle connector, M 5-3mm inside, copper
  • Thread

    M 5

  • Hose Ø inside [mm]

    3

  • H [mm]

    8,5

  • SW [mm]

    8

Immediately available

4,56 €

Angle connector, M 5-4mm inside, copper
  • Thread

    M 5

  • Hose Ø inside [mm]

    4

  • H [mm]

    8,5

  • SW [mm]

    8

Immediately available

4,56 €

Angle connector, G 1/8"-3mm inside, copper
  • Thread

    G 1/8"

  • Hose Ø inside [mm]

    3

  • H [mm]

    10,5

  • SW [mm]

    13

Immediately available

4,75 €

Angle connector, G 1/8"-4mm inside, copper
  • Thread

    G 1/8"

  • Hose Ø inside [mm]

    4

  • H [mm]

    11,2

  • SW [mm]

    13

Immediately available

5,17 €

Angle connector, G 1/8"-6mm inside, copper
  • Thread

    G 1/8"

  • Hose Ø inside [mm]

    6

  • H [mm]

    13,4

  • SW [mm]

    14

Immediately available

4,75 €

Angle connector, G 1/4"-4mm inside, copper
  • Thread

    G 1/4"

  • Hose Ø inside [mm]

    4

  • H [mm]

    11,7

  • SW [mm]

    17

Immediately available

5,73 €

Angle connector, G 1/4"-6mm inside, copper
  • Thread

    G 1/4"

  • Hose Ø inside [mm]

    6

  • H [mm]

    13,9

  • SW [mm]

    17

Immediately available

5,67 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
