Universal cylinder switch - C-groove, T-groove (5 mm) & round cylinder, Type D

Documents

Description

Materials:
Body: plastic, screw: metal

Connecting line:
PVC cable

Protection class:
IP 67

Temperature range:
-10°C bis +70°C

Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the groove of the cylinder and locking it using the threaded rod.

Suitable:
Universal use for cylinders with continuous C groove, continuous and non-continuous T groove (5 mm) and with optional tension tape also round cylinder Ø 8 - 63 mm.

Advantages:
•no mounting material required for cylinder with C-groove & T-groove (5mm), •a switch that fits many products of most Asian brands (e.g. SMC), •with included adapter fits many products of most European brands (e.g. Festo), •can be used with optional tension tape for round cylinders

no picture

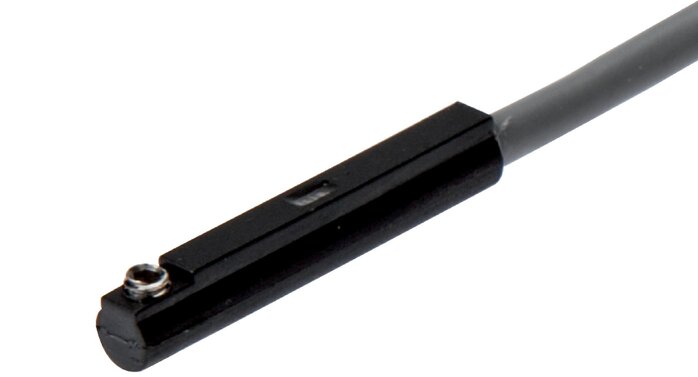

  • Exemplary representation: Reed sensor

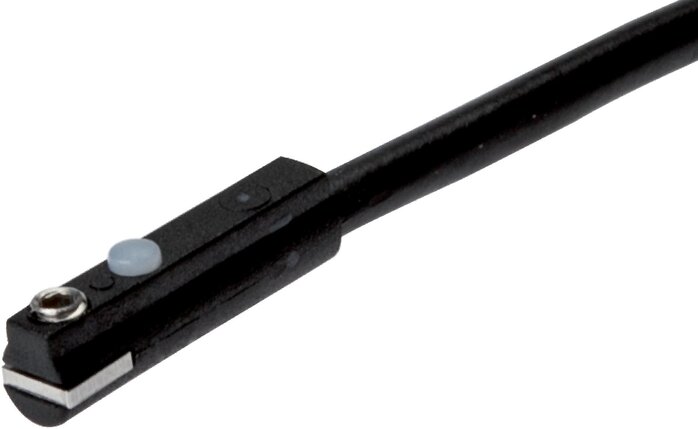

  • Exemplary representation: Solid state sensor & fully electronic sensor

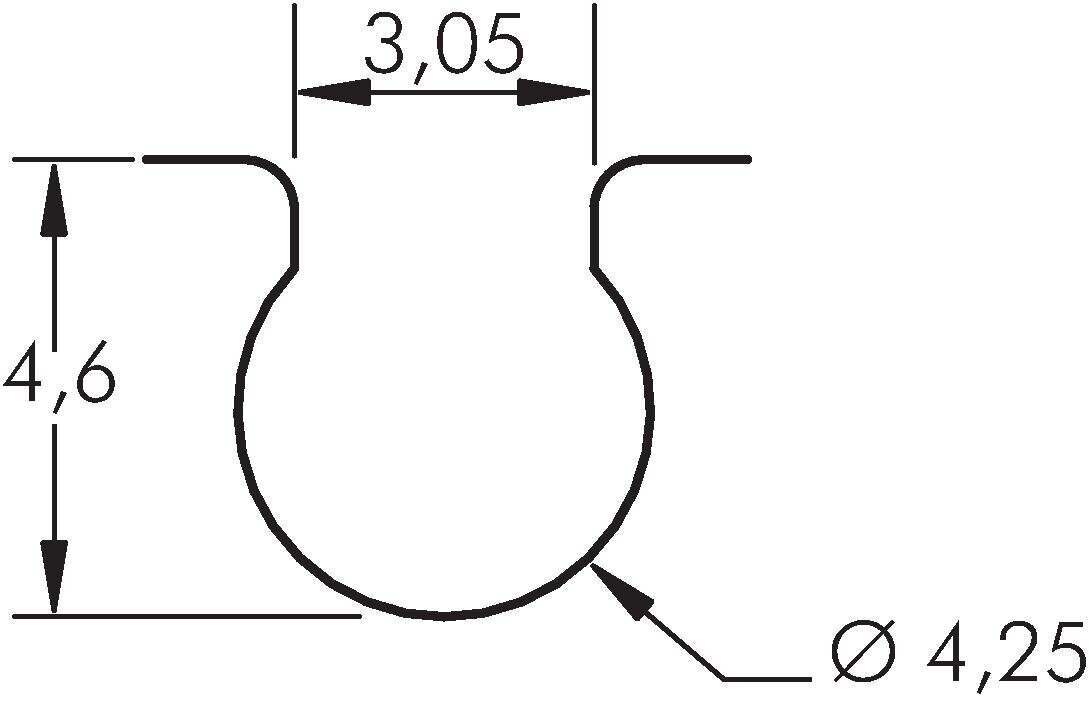

  • Drawing: C-groove
  • Drawing: T-groove

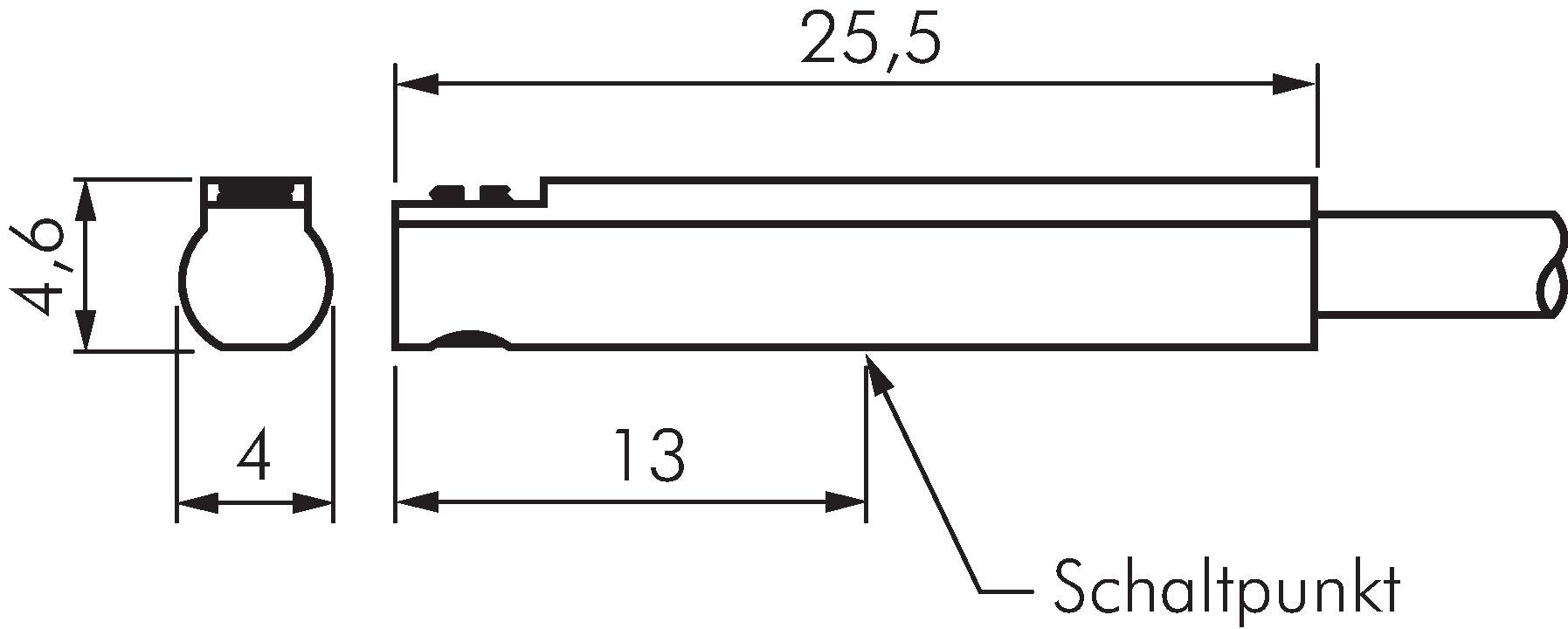

  • Drawing: Sensor dimensions, reed sensor

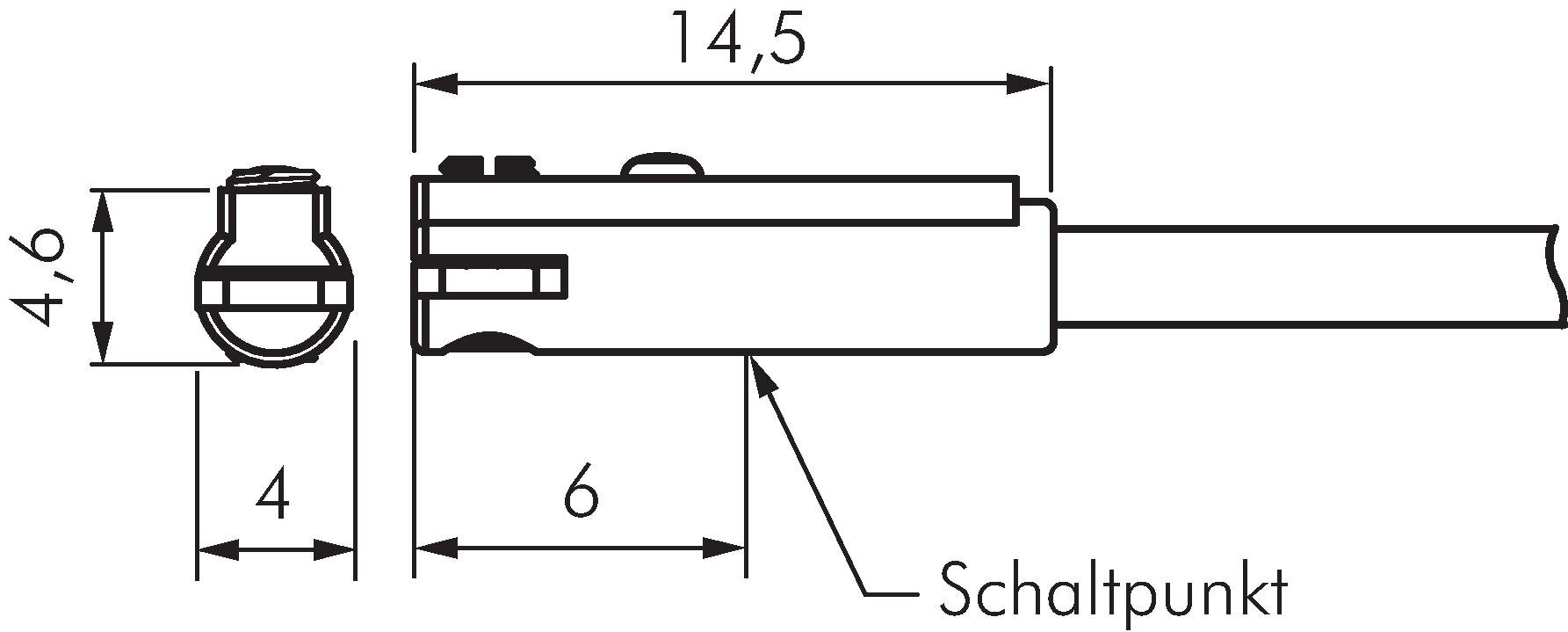

  • Drawing: Sensor dimensions, solid state & fully electronic
  • Schematic symbol: M 8 plug (3-pin)

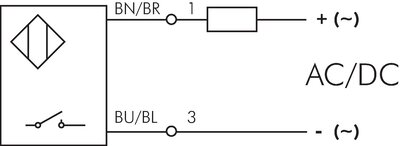

  • Schematic symbol: 2-wire reed sensor
  • Schematic symbol: 2-wire solid state sensor
  • Schematic symbol: fully electronic sensor

Find the right item

Version
Operating voltage
Switching
max. Switching current/ performance
Connecting line

Universal cylinder switch - C-groove, T-groove (5 mm) & round cylinder, Type D: 5 of 5 items

ZSD 12
Cylinder switches, 2-wire reed sensor, red LED (ZSD 12)
Cylinder switches, 2-wire reed sensor, red LED

  • Version

    2-wire reed sensor, red LED

  • Operating voltage

    5 - 120 V AC/DC

  • Switching

    NO contact

  • max. Switching current/ performance

    100 mA/10 W

  • Connecting line

    3 mtr., 2 x 0.18 mm²

Immediately available

22,20 €

ZSD 22
Cylinder switches, 2-wire solid-state sensor, red LED (ZSD 22)
Cylinder switches, 2-wire solid-state sensor, red LED

  • Version

    2-wire solid-state sensor, red LED

  • Operating voltage

    10 - 28 V DC

  • Switching

    NO contact

  • max. Switching current/ performance

    50 mA/1,4 W

  • Connecting line

    3 mtr., 2 x 0.18 mm²

Immediately available

22,08 €

ZSD 22-M8
Cylinder switches, 2-wire solid-state sensor, red LED (ZSD 22-M8)
Cylinder switches, 2-wire solid-state sensor, red LED

  • Version

    2-wire solid-state sensor, red LED

  • Operating voltage

    10 - 28 V DC

  • Switching

    NO contact

  • max. Switching current/ performance

    50 mA/1,4 W

  • Connecting line

    0.15 m, 2 x 0.18 mm² with M 8 connector (3 pin)

Immediately available

25,20 €

ZSD 33
Cylinder switches, Fully electronic sensor (reverse polarity protection), green LED (ZSD 33)
Cylinder switches, Fully electronic sensor (reverse polarity protection), green LED

  • Operating voltage

    5 - 30 V DC

  • Switching

    NO contact (PNP)

  • max. Switching current/ performance

    200 mA/6 W

  • Connecting line

    3 mtr., 3 x 0.18 mm²

  • Version

    Fully electronic sensor (reverse polarity protection), green LED

Immediately available

32,33 €

ZSD 33-M8
Cylinder switches, Fully electronic sensor (reverse polarity protection), green LED (ZSD 33-M8)
Cylinder switches, Fully electronic sensor (reverse polarity protection), green LED

  • Operating voltage

    5 - 30 V DC

  • Switching

    NO contact (PNP)

  • max. Switching current/ performance

    200 mA/6 W

  • Connecting line

    0.15 m, 3 x 0.18 mm² with M 8 connector (3 pin)

  • Version

    Fully electronic sensor (reverse polarity protection), green LED

Immediately available

35,50 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
