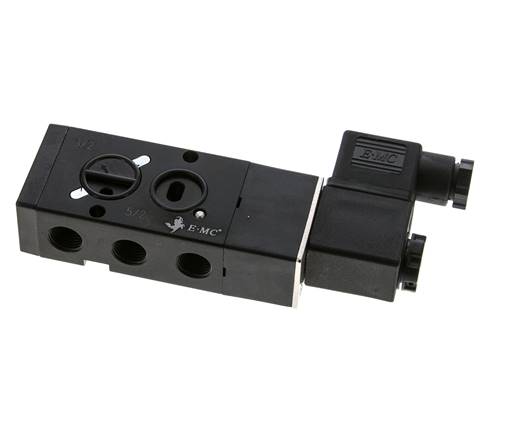

3/2- and 5/2-way NAMUR solenoid valve G1/4", 24 V DC
Item number:
V 5231-08MG-24V=
Item description
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec.
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
T (plug size 1)
Service life:
min. 12 million switching cycles
Advantages:
•Simply by rotating the seal, the valve can be changed between 3/2-way and 5/2-way function
•Economical, as the same valve can be used for single-acting drives.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5 to +60 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec.
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
T (plug size 1)
Service life:
min. 12 million switching cycles
Advantages:
•Simply by rotating the seal, the valve can be changed between 3/2-way and 5/2-way function
•Economical, as the same valve can be used for single-acting drives.
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Properties
| Control voltage | 24 V DC |
| function | 5/2-way (spring return) or 3/2-way, NC (spring return) |
| Thread (1x) | G 1/4" |
| Thread exhaust air (2x) | G 1/4" |
| Nominal width [mm] | 5,6 |
| flow [l/min] | 1800 oder 1000 |
| Power consumption (DC) [W] | 4,8 |
| Spare solenoid coil | MAG T 24V= |
Further information on V5231-08MG-24V=
| Weight | 330 g / pcs |
| GTIN | 4050571822293 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 721) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
