Angle push in fitting M 3-3mm, IQS-MSV (Standard)

IQSL M33 MSV

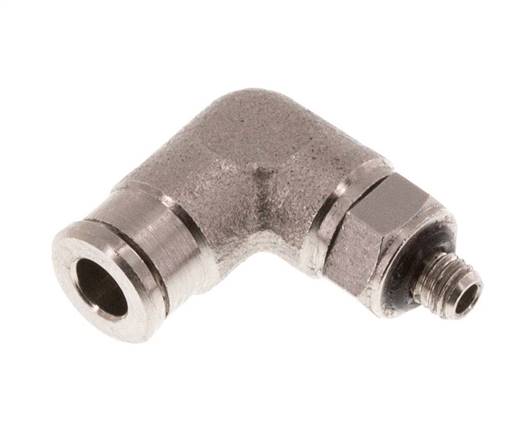

Exemplary representation: Push-in L-fitting with cylindrical thread, nickel-plated brass
7,28€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and sleeve: Nickel-plated brass, seals: NBR (High temperature version: FKM), holding claws: Stainless steel (only silicone-free seals and lubricants are used during assembly!)

Temperature range:
-20°C up to max. +80°C (high temperature version: -20°C up to max. +150°C)

Operating pressure:
-0,98 to 16 bar

Media:
oiled and unoiled compressed air, neutral and non-hazardous gasses

Advantages:
•wide range of products,
•stable design thanks to all-metal construction,
•also available with M 7, M 8x1, M 10x1 and M 12x1.5 threads,
•cylindrical screw-in threads sealed by chambered O-ring
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Standard
G M 3
D [mm] 3
Temperature range [°C] -20 to +80
IQSLM33MSV
{{ $t('shop.all.gewicht') }} 3,9 g / pcs
{{ $t('shop.all.gtin') }} 4050571863326
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 75) atlas9_seiten/75.pdf
    Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
    3D CAD file (volume model) protected/cad/3d/70363/iqslm33msv437621.stp
  • {{ $t('shop.display.datenblatt.titel') }} (Print view)


{{ $t('shop.all.unverbindliche_richtwerte') }}
