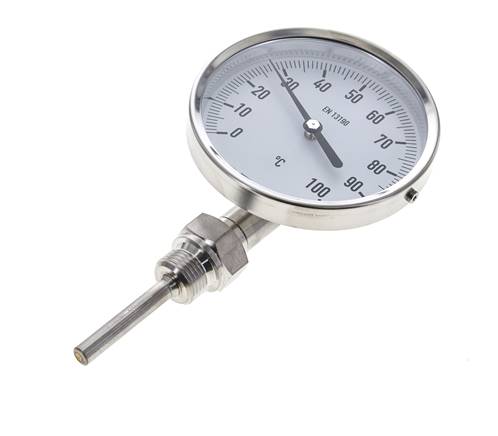

Bimetallic thermometer, vert-ical D100/0 to +100°C/63mm
Item number:
TS 10010063
Item description
Application:
Industrial manometer for use in mechanical engineering, tank construction, pipeline construction and heating technology. Also suitable for aggressive materials to be measured.
Materials:
Housing: 1.4301, stem: 1.4571, window: instrument plate glass
Display correction:
Adjustable indicator
Protection class:
IP 43
Protective tube connection:
G 1/2" (thermowell model B)
Dip shaft Ø:
8 mm
Class:
1
Temperature range:
Environment: -20 to +60 °C
Operating pressure at the stem:
max. 25 bar
Note:
WIKA Type R52
Industrial manometer for use in mechanical engineering, tank construction, pipeline construction and heating technology. Also suitable for aggressive materials to be measured.
Materials:
Housing: 1.4301, stem: 1.4571, window: instrument plate glass
Display correction:
Adjustable indicator
Protection class:
IP 43
Protective tube connection:
G 1/2" (thermowell model B)
Dip shaft Ø:
8 mm
Class:
1
Temperature range:
Environment: -20 to +60 °C
Operating pressure at the stem:
max. 25 bar
Note:
WIKA Type R52
Properties
| Diameter [mm] | 100 |
| Display range [°C] | 0 to +100 |
| Stem length L [mm] | 63 |
| Scale division [K] | 1 |
| F [mm] | 66 |
| H [mm] | 40,0 |
Further information on TS10010063
| Weight | 330 g / pcs |
| GTIN | 4050571702236 |
| Customs duty number | 90251900 |
| RoHS compliant | Yes |
| Manufacturer | WIKA (WEEE DE92770372) |
Documents
- Catalogue page Atlas 9 (Page 691d) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
