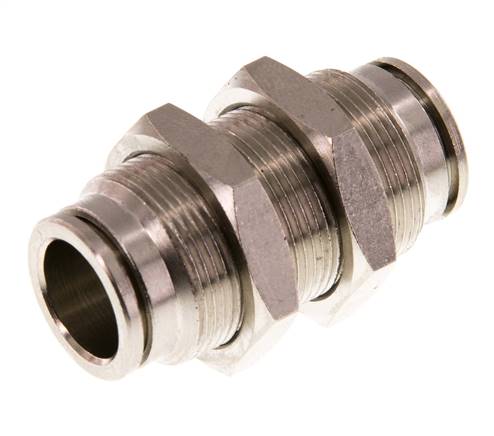

Bulkhead push in fittings 12mm, IQS-MSV (High temperature)
Item number:
IQSS 120 MSV-V
Item description
Materials:
Body and sleeve: Nickel-plated brass, seals: NBR (High temperature version: FKM), holding claws: Stainless steel (only silicone-free seals and lubricants are used during assembly!)
Temperature range:
-20°C up to max. +80°C (high temperature version: -20°C up to max. +150°C)
Operating pressure:
-0,98 to 16 bar
Media:
oiled and unoiled compressed air, neutral and non-hazardous gasses
Advantages:
•wide range of products,
•stable design thanks to all-metal construction,
•also available with M 7, M 8x1, M 10x1 and M 12x1.5 threads,
•cylindrical screw-in threads sealed by chambered O-ring
Body and sleeve: Nickel-plated brass, seals: NBR (High temperature version: FKM), holding claws: Stainless steel (only silicone-free seals and lubricants are used during assembly!)
Temperature range:
-20°C up to max. +80°C (high temperature version: -20°C up to max. +150°C)
Operating pressure:
-0,98 to 16 bar
Media:
oiled and unoiled compressed air, neutral and non-hazardous gasses
Advantages:
•wide range of products,
•stable design thanks to all-metal construction,
•also available with M 7, M 8x1, M 10x1 and M 12x1.5 threads,
•cylindrical screw-in threads sealed by chambered O-ring
Properties
| Version | High temperature |
| D [mm] | 12 |
| A | M 20x1 |
| Emax [mm] | 17 |
| Temperature range [°C] | -20 to +150 |
Further information on IQSS120MSV-V
| Weight | 60 g / pcs |
| GTIN | 4050571862565 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 77) (PDF)
- Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
