  5. SKG 13 ES

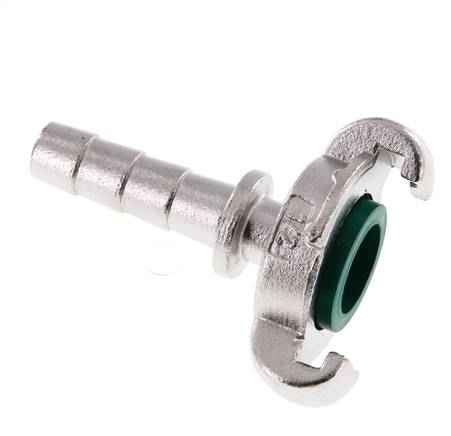

Compressor coupling 13 (1/2") mm hose

Item number:

SKG 13 ES

All items of this group
€56.87 incl. VAT
pcs
Item description
Temperature range:
 Steel or malleable cast iron: -40°C to +95°C, stainless steel: -30°C to +200°C

Note:
 Brass seals are preferably used right at the compressor to prevent sticking of the seals from high temperature. The seal is held reliably in the coupling through free blow-off through the screw. Always use a coupling with a rubber seal as the counter-coupling.
Properties
Ma­te­r­ial 1.4401
Seals FKM
Hose di­am­e­ter (inner) [mm] 13 (1/2")
Op­er­at­ing pres­sure [bar] 16
DN [mm] 9
Re­place­ment seals SKG GU ES
Further information on SKG13ES
Weight 170 g / pcs
GTIN 4050571156541
Customs duty number 73071990
RoHS compliant Yes
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
