Item description
Version:

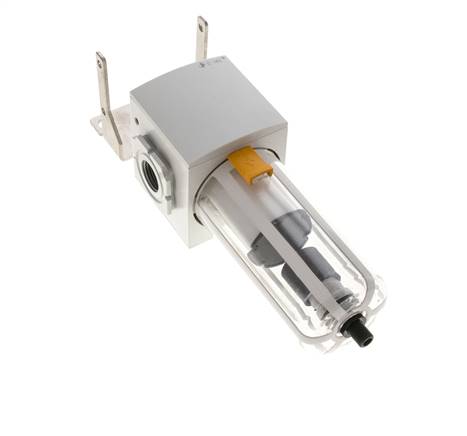

Filtering using the centrifugal principal and sintered filter
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Condensate draining:
semi-automatic**
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Scope of delivery:
Filter including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
Filtering using the centrifugal principal and sintered filter
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Condensate draining:
semi-automatic**
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Scope of delivery:
Filter including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
Properties
| Model series | Eco-Line 4A |
| Thread | G 1/2" |
| Container design | Plastic container, double-walled |
| Condensate drain | automatic |
| flow [l/min] | 4000 |
| Max. condensate amount [cm³] | 75 |
| L [mm] | 80 |
| H [mm] | 201 |
| H1 [mm] | 36 |
| Coupling kit | KP EA4000 |
Further information on EAF4000-04D
| Weight | 850 g / pcs |
| GTIN | 4050571924195 |
| Customs duty number | 84811005 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
Documents
- Catalogue page Atlas 9 (Page 560) (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
**as soon as the input pressure falls below the minimum. input pressure, the drain valve opens automatically.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
